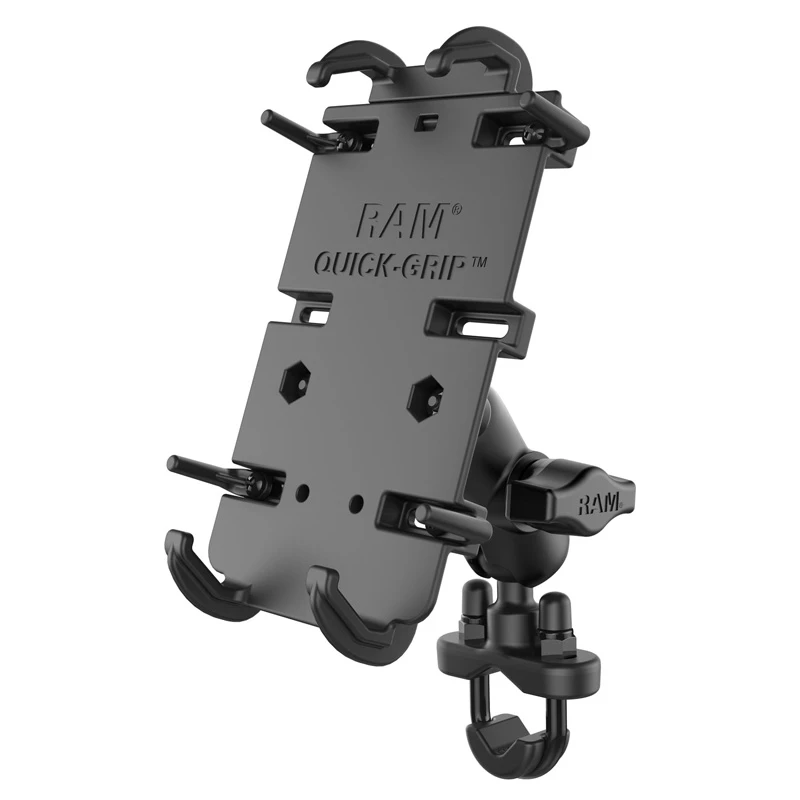

Ram Mount’s RAM-B-149Z-A-PD4U Quick-Grip XL Phone Mount with Handlebar U-Bolt Base.

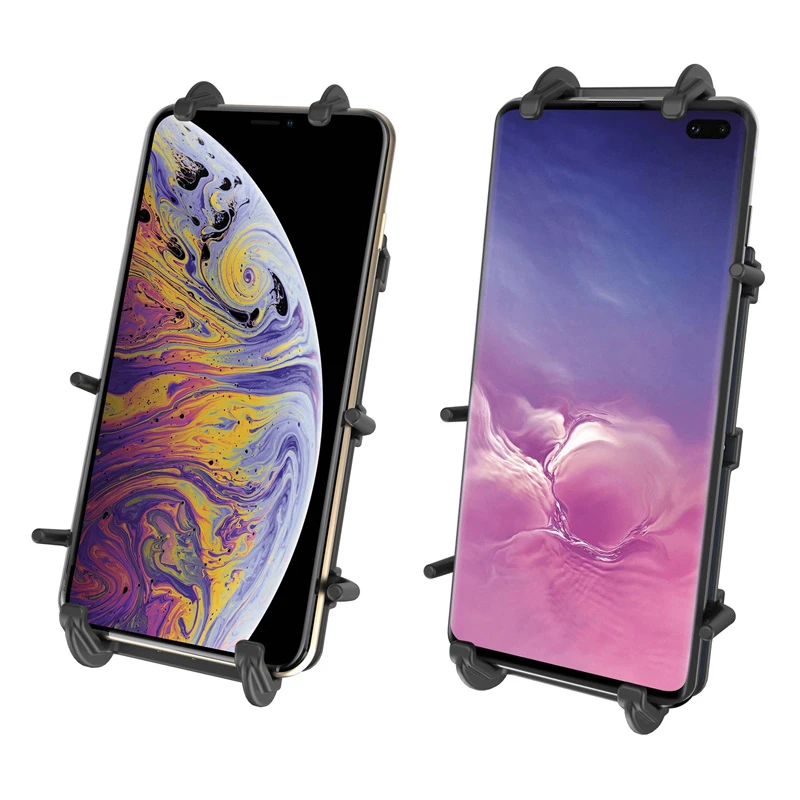

This version of the spring-loaded RAM Quick-Grip holder provides a secure fit for a variety of large phones and other devices. The adjustable side keepers ensure that devices like GPS units and Bluetooth speakers within the listed compatible dimensions will also fit in the holder. Included is a short RAM double socket arm and zinc-coated handlebar U-Bolt base that accommodates rails from .5” to 1.25” in diameter.

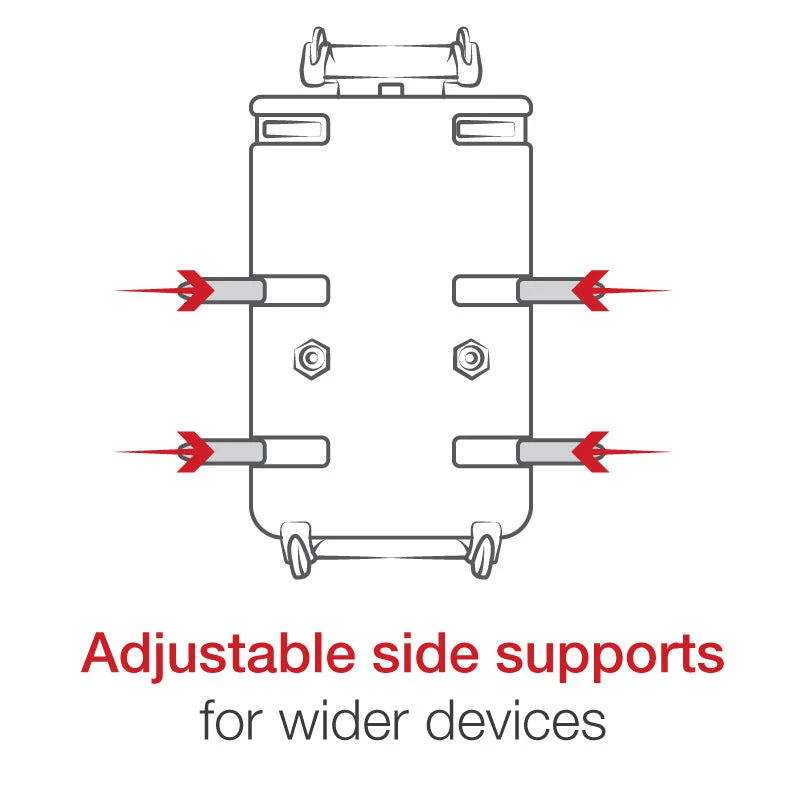

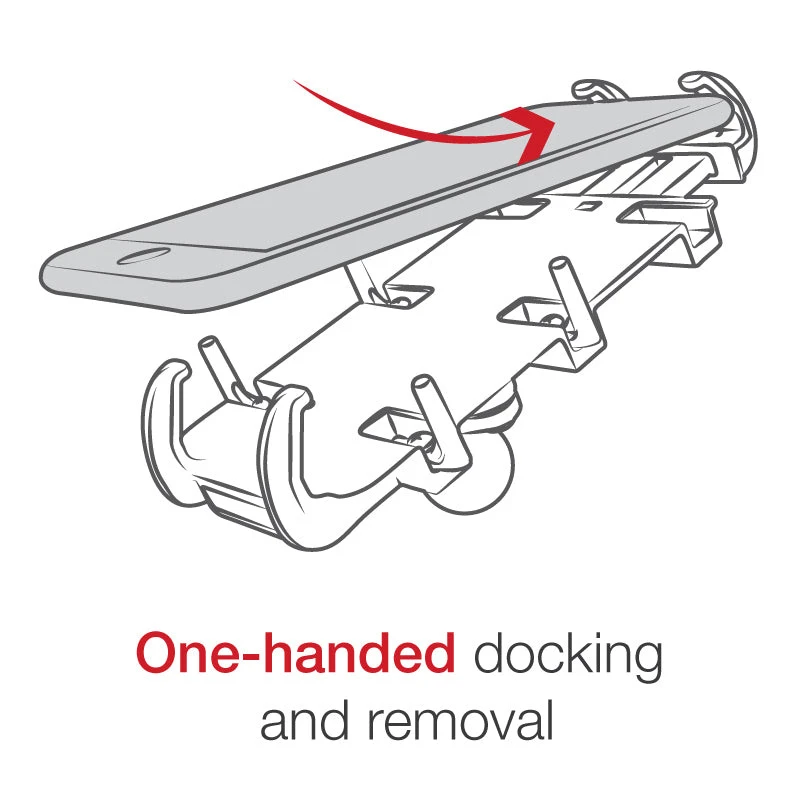

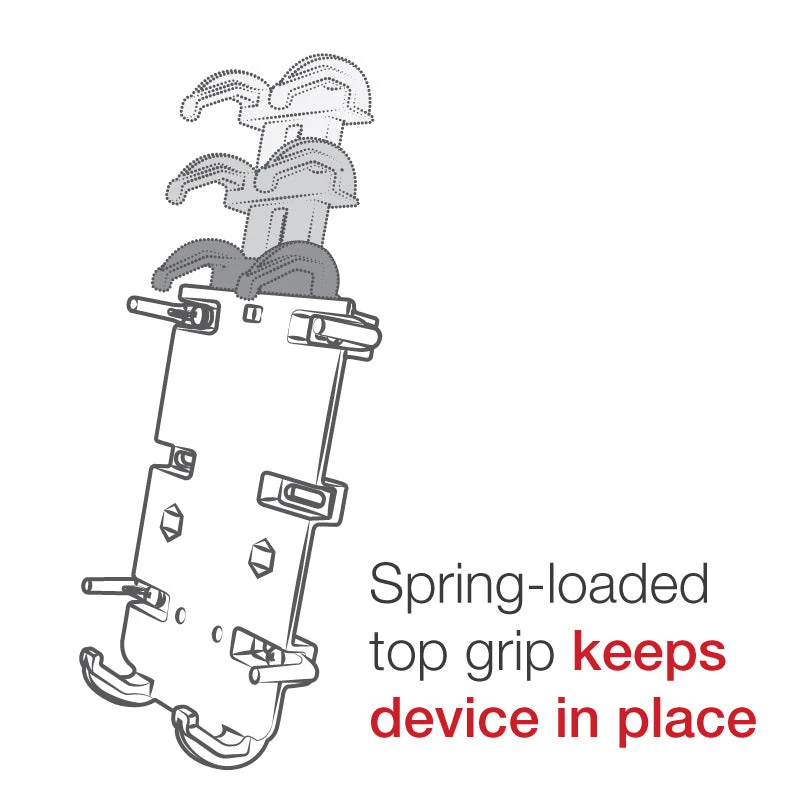

• Spring-loaded holder features adjustable side supports that provide a secure fit for a variety of large phones and other devices; easily insert and remove your phone with one hand

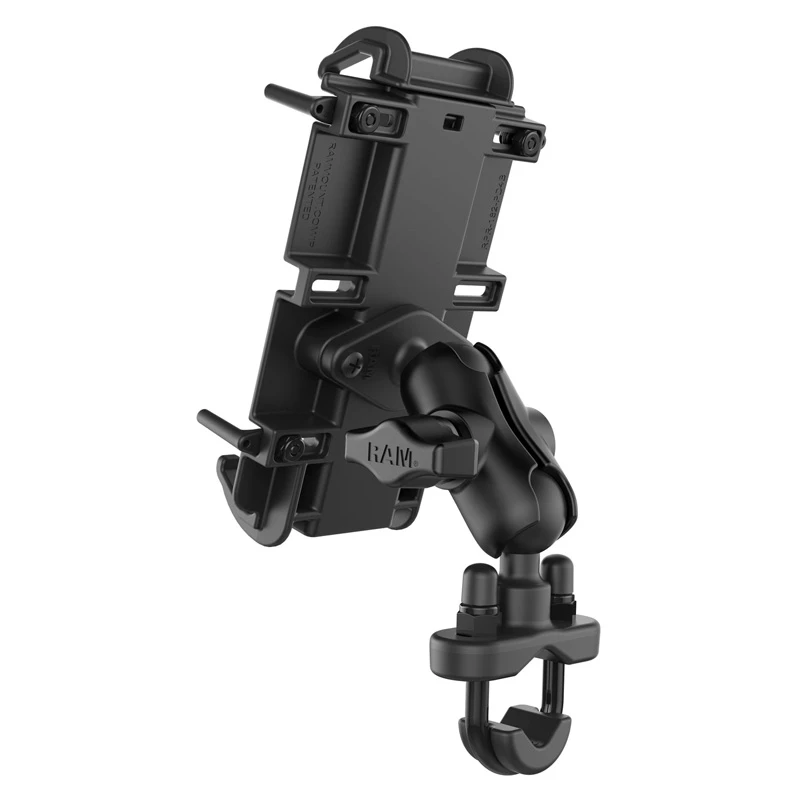

• Includes U-bolt base that accommodates rails from .5″ to 1.25″ in diameter and a short length, B size RAM double socket arm; ball and socket technology allows for near-infinite adjustability
• Made of powder-coated, marine-grade aluminum and high-strength composite for durability and reliability in the most demanding environments
• Backed by a lifetime warranty
• CLAMP RANGE: .5″ – 1.25″ diameter
• SOCKET TO SOCKET LENGTH: 1.75″
• BALL SIZE: B Size (1″)
• PACKAGING TYPE: Poly Bag
• WEIGHT: 0.8 lb

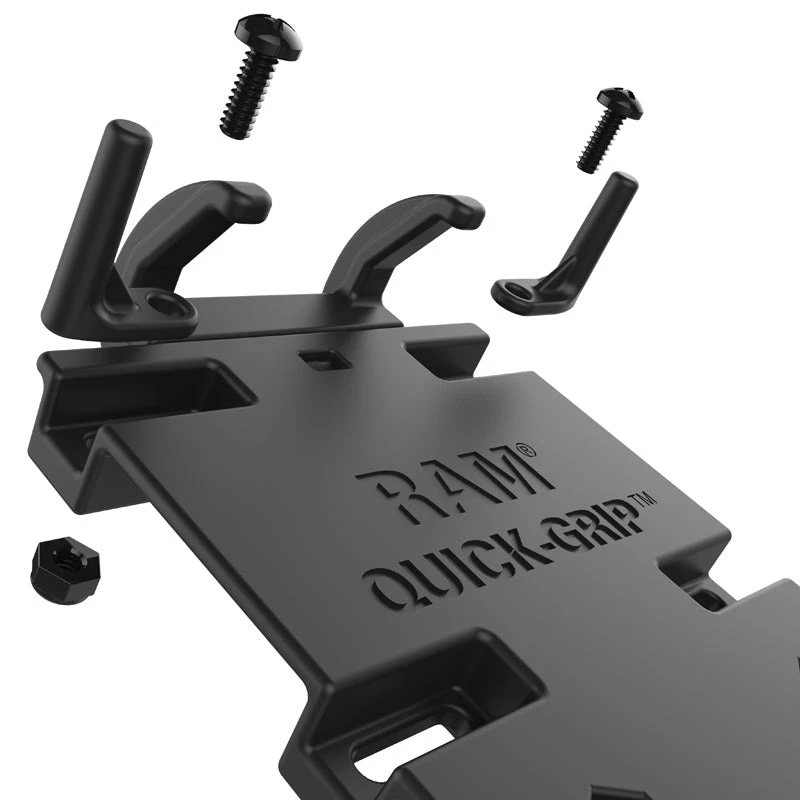

• Assembly Hardware
• (1) 1/4″-20 U-Bolt for .5″ – 1″ Rails
• (1) 1/4″-20 U-Bolt for 1″ – 1.25″ Rails
• (2) 1/4″-20 Nylock Nuts
• (2) Rubber Caps
• (1) U-Bolt Spacer

Height Range: 5.75″ – 7.25″

Width Range: 2.625″ – 3.625″

Max Depth: .72″

Standard Use: 2 lbs

Heavy-Duty Use: 1 lb

Marine-grade aluminum

High strength composite
